Female Displayport Micro USB Solder Connector 180 Degrees SMT DIP

Ask Lasest Price
Brand Name :	Jinze
Model Number :	DP19D-LBA2M-RHA
Certification :	SGS/ROHS
Price :	Negotiation
Payment Terms :	T/T
Supply Ability :	80000pcs/ Day
Delivery Time :	15-25 Days

Add to Cart

Product Details
Company Profile

Female Displayport Micro USB Solder Connector 180 Degrees SMT DIP

Specifications

Housing	LCP UL94V-0 Black
Contact	Brass (C2680), T=0.20mm
Shield	C2680, T=0.40mm
Spacer	LCP, UL 94V-0
Terminal Finish	Goldflash 0.8u" Min. on Contact Area
	Matte Tin 50u" plating on solder tail
	Under Nickel Plating 50u" Min Over All
Shield	50u" Min. Nickel underplated Overall

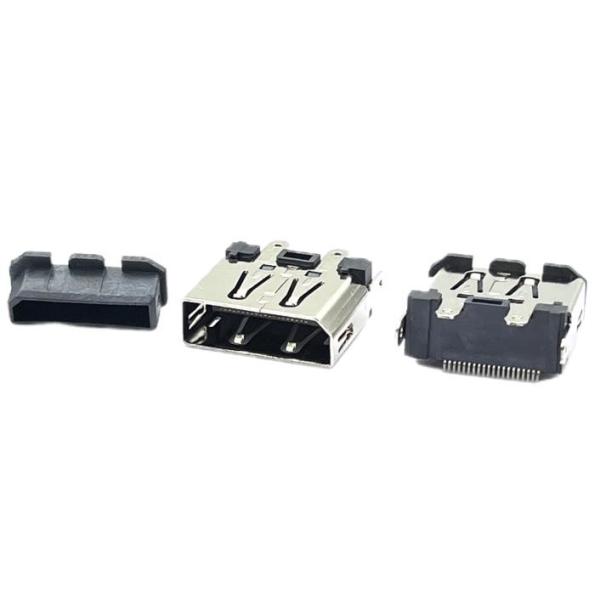

Images:

Drawings:

DP19D-LBA2M-RHA.pdf, if you need the Drawing, pls download it

Features and Benefits

• PCB space saving footprint
• D-shaped chamfered interface provides polarization
• Fully shielded against EMI and RFI emissions
• Detent locks and latch holes for secure mating connection
• PCB alignment pegs
• PCB solder pegs for in creased rigidity and retention to PCB

Product Application Information

These DisplayPort receptacle connectors form part of the DisplayPort interconnection system which is used for delivering high definition video of up to 10.8 Gbit/s and audio signals. Applications include games consoles, monitors, personal computers, projectors, set-top boxes, TV displays and work stations

Is this socket protected against interference?

Yes, this socket is fully shielded for protection against EMI (electromagnetic interference) and RFI (radio frequency interference), so you can rest assured you'll get reliable signal transmission.
