| Ask Lasest Price | |
| Brand Name : | Jinze |
| Model Number : | RJ26A-PBA10-TRA |
| Certification : | ISO9001/ROHS/CE/FCC |
| Price : | Negotiation |
| Payment Terms : | T/T |
| Supply Ability : | 80000pcs/ Day |
| Delivery Time : | 15-25 Days |
A Type C+RJ45 connector is a type of adapter that allows a device to connect to a network via an Ethernet cable using a USB Type-C port. The adapter typically has a USB Type-C connector on one end and an RJ45 port on the other end.
The USB Type-C port is used to provide power to the adapter and to transfer data between the adapter and the device it is connected to. USB Type-C is a versatile port that supports various protocols, including USB, DisplayPort, HDMI, and Ethernet, among others.
The RJ45 port is used to connect the adapter to a wired Ethernet network. This type of adapter is commonly used to add Ethernet connectivity to devices that only have a USB Type-C port, such as some laptops, tablets, or smartphones. It is also useful for devices with malfunctioning Ethernet ports or for situations where a wired connection is preferred over a wireless one.
Specifications
| RJ45 Housing: | Thermo Plastics PA9T+30% GF, U L94V-0 |
| Insert Base: | Thermo Plastics PA9T+30% GF, UL94V-0 |
| RJ45 Terminal: | Phosphor Bronze C5191. Thickness=0.30mm |
| Full Gold Plating on RJ45 contact area | |
| Tin Plating 100u" on solder tail area | |
| 45u" min Ni underplating over all | |
| Shell: | Stainless steel 304, Thickness=0.25mm immersion Tin |
| Voltage Current Rating: | 1.5 AMP. 30V AC |
| Insulation Resistance: | 1000MΩ Min. |
| Contact Resistance: | 40MΩ Max. |
| Dielectric Withstanding Voltage: | 500 V AC |
| Durability | 750 cycles |
| Dimension: | 19.05mm*27.50mm*30.4mm |
| Operating Temperature: | -20°C to +85°C |
| LED Option | Green/Yellow |
| Type C | |
| Housing | LCP, UL 94V-0 BK |
| Bottom Cover: | LCP, UL 94V-0 BK |
| Shell: | SUS304-1/2H, T=0.20mm |

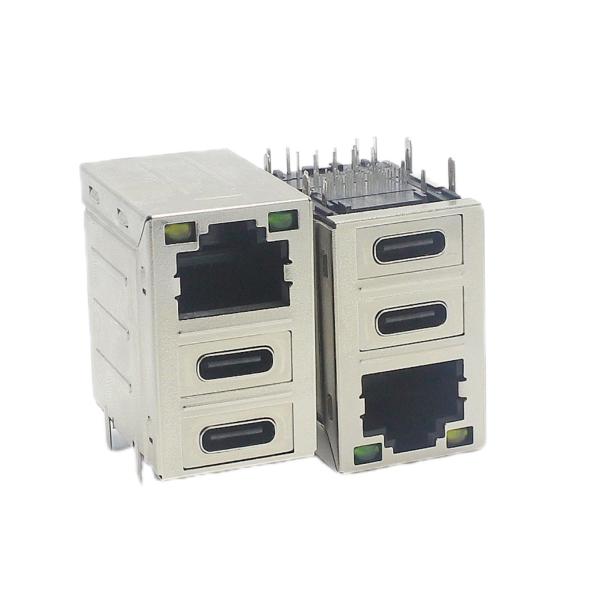

Images:
Drawings:
2D Drawings:
RJ26A-LBA10-TRA.pdf, if you need the Drawing, pls download it!
