| Brand Name : | Jinze |
| Model Number : | UB53H-LLA2A-RHA |
| Certification : | SGS/ROHS |
| Price : | Negotiation |
| Payment Terms : | T/T |
| Supply Ability : | 80000pcs/ Day |
| Delivery Time : | 15-25 Days |

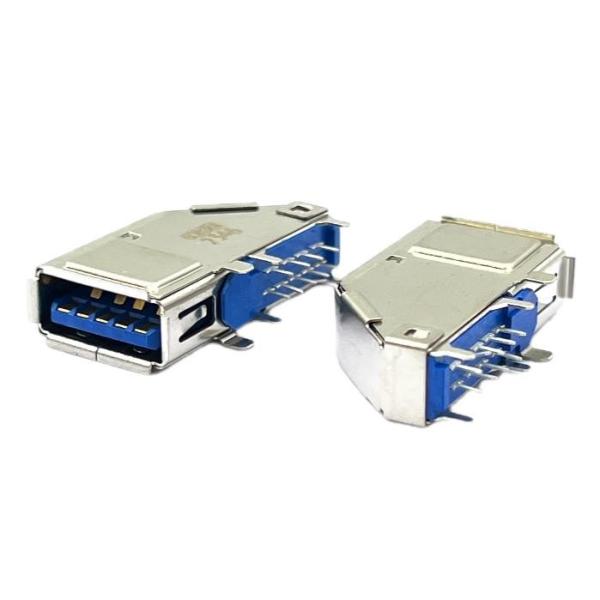

Mini LCP HF 9 Pins Usb Female Socket Connectors 90 Degrees STD Side Plug
Specifications:
| Housing | LCP UL94 V-0 HF Blue (300C) |
| Contact | C5191 ,T=0.20mm For Pin1~Pin4 |
| C2680, T=0.20mm For Pin5~Pin9 | |
| Shell | SUS201, T=0.25mm |
| Contact Plating | Au 1u" Plating on Contact Area |
| Matte Tin 100u" Min Plated on Solder Tails | |
| Ni 50u" Min Plated Over all | |
| Shell Plating | Nickel(50u" Min.) Plating Overall |
| Contact Current Rating | 1.8A for Pin1&4 |
| 0.25A for All the other contacts | |
| Voltage Rating | 30V DC/AC Max. |
| Contact Resistance | 30mΩ Max. initial For Vbus & GND Contacts |
| 50mΩ Max Initial for All other Contacts | |
| Insulation Resistance | 100mΩ Min. |
| Dielectric Withstanding Voltage | 100VAC R.M.S |
| Mating Force | 35N(3.57Kg) Max |
| Unmating Force | 10N(1.02Kg) Min; After Test: 8N(0.816Kg)Min |
| Operating Temperature | -55ºC~+85ºC |
| Durability | 5000 Cycles |
| Salt Spray | 48HR Pass |
Images:
UB53H-LLA2A-RHA.pdf, if you need the Drawing, pls download it
A USB connector is the socket, port, or jack into which the plug end of a USB cable or USB-powered device is inserted. USB connectors are typically female, while the USB plug on the cable is male.
Rectangular, slot-shaped USB type-A connectors are most common and can be found on computers, personal electronics, and peripherals. This includes keyboards and mice, mobile phones and chargers, memory sticks (flash drives), and other USB accessories.
|
|
