| Brand Name : | Jinze |
| Model Number : | UB02E-PBA70-TRA |
| Certification : | SGS/ROHS |
| Price : | Negotiation |
| Payment Terms : | T/T |
| Supply Ability : | 80000pcs/ Day |
| Delivery Time : | 15-25 Days |
PBT 90 Degrees 2.0 USB Socket Connector 4Pin A Female 1.0AMP
Specifications:
| Housing | PBT UL94V-0 |
| Contact | Brass |
| Shell | Brass |
| Contact Plating | Contact Area: Au 1u" |
| Solder Area: Bright Tin 100u" Min | |
| Ni 50u" Min Underplated Overall | |
| Shell Plating | Ni 50u" Min Plated Overall |
| Current Rating | 1.0A |
| Contact Resistance | 30mΩ Max |
| Insulation Resistance | 1000mΩ Min at DC 500V |
| Dielectric Withstanding Voltage | AC 750V For 1 Minute |
| Mating Force | 35N Max |
| Unmating Force | 10N Min |
| Durability | 1500 Cycles |
| Operating Temperature | -20ºC~+60ºC |
Images:

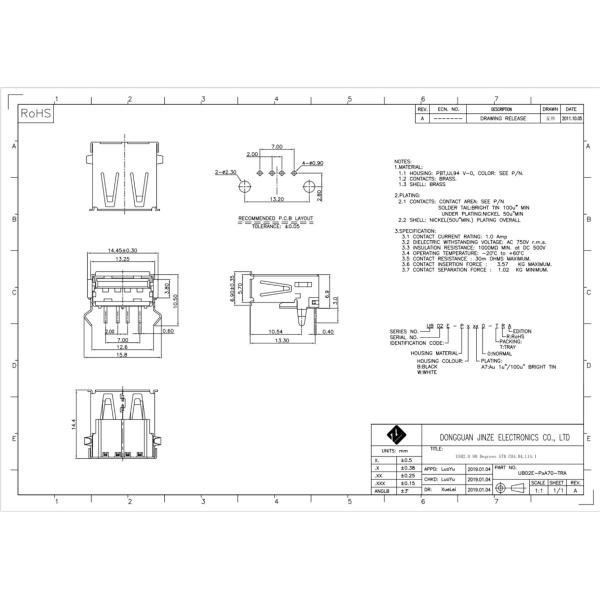

UB02E-PxA70-TRA.pdf if you need the Drawing, pls download it
A USB connector is the socket, port, or jack into which the plug end of a USB cable or USB-powered device is inserted. USB connectors are typically female, while the USB plug on the cable is male.
Rectangular, slot-shaped USB type-A connectors are most common and can be found on computers, personal electronics, and peripherals. This includes keyboards and mice, mobile phones and chargers, memory sticks (flash drives), and other USB accessories.
|
|
