| Brand Name : | Jinze |
| Model Number : | MP01E-6BB0A-BRA |
| Certification : | ROHS/CE |
| Price : | Negotiation |
| Payment Terms : | T/T |
| Supply Ability : | 80000pcs/ Day |
| Delivery Time : | 15-25 Days |
Product Description

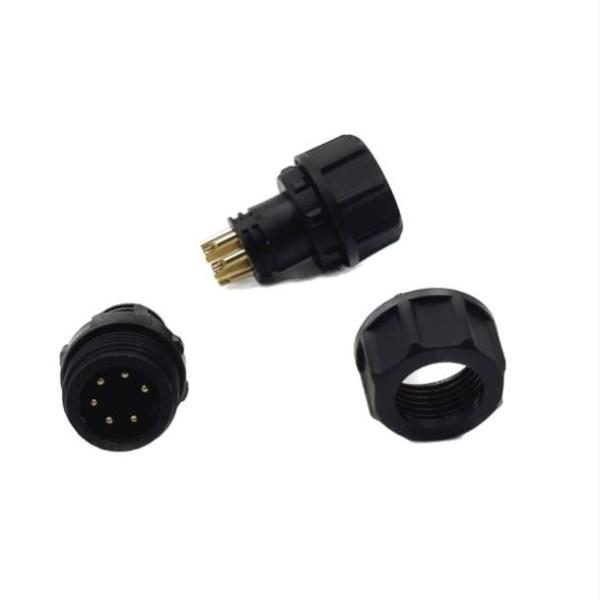

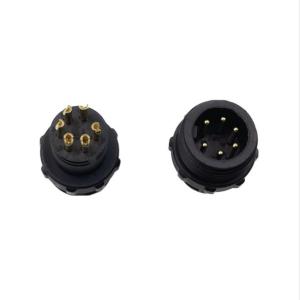

M13 6Pin Circular Electrical Connectors 20AWG Female Male Cable Connectors
M13 6-pin circular electrical connectors are a specific type of circular connector with a diameter of approximately 13 millimeters (mm) and six pins or contacts. These connectors are commonly used in various applications where a compact and reliable electrical connection is required.
The M13 6-pin circular connectors are often used in sensor applications, automation systems, industrial equipment, and other devices that require a small form factor connector. They provide a secure and robust connection for transmitting power, data, or control signals between the sensor or device and the host system.
The pins or contacts in the M13 6-pin connectors can be used for various purposes, depending on the specific application requirements. They can carry signals such as analog or digital data, power supply voltages, control signals, or a combination of these.
Specifications:
| Current Rating | 4 AMPS |
| Voltage Rating | DC 30V |
| Conductor Diameter | Φ1.0 |
| Adapter Wire | 20AWG |
| Insertion & Retention Force | 3.5KG / 1.5KG |
| Contact Material | Brass |
| Contact Plating | Full Gold Finished |
| Insulator Material | PA9T |
Images
2D Drawing
MP01X-6BB0A-BRA.pdf , This drawing is for 2P to 7P, if you need the Drawing, pls download it!
Please Note:
Free for Plastic Nut, but without Assembly
