| Brand Name : | Jinze |
| Model Number : | MP03E-6BB0A-BRA |
| Certification : | ROHS/CE |
| Price : | Negotiation |
| Payment Terms : | T/T |
| Supply Ability : | 80000pcs/ Day |
| Delivery Time : | 15-25 Days |
Product Description

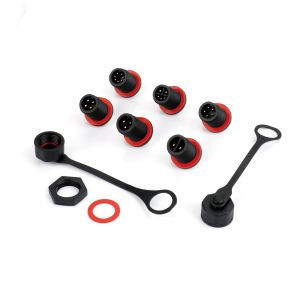

Male PCB 6Pin Circular Connector PA9T Gold Plated Customized
Male PCB 6-pin circular connectors are utilized in a wide range of applications, including industrial equipment, automotive electronics, medical devices, and consumer electronics. They offer a reliable and robust connection between PCBs or between a PCB and an external device, facilitating the transfer of electrical signals and power.
When selecting a male PCB 6-pin circular connector, it's important to consider factors such as the electrical ratings, mechanical dimensions, pin spacing, and compatibility with the mating female connector. These specifications should align with the requirements of the PCB design and the intended application.
Specifications:
| Current Rating | 4 AMPS |
| Voltage Rating | DC 30V |
| Conductor Diameter | Φ1.0 |
| Adapter Wire | 20AWG |
| Insertion & Retention Force | 3.0KG / 1.5KG |
| Contact Material | Brass |
| Contact Plating | Full Gold Finished |
| Insulator Material | PA9T |
Images
2D Drawing
MP03X-6BB0A-BRA.pdf, This drawing is for 2P to 7P, if you need the Drawing, pls download it!
Please Note:
Free for Plastic Nut, but without Assembly
